Gun Guides DISASSEMBLY & REASSEMBLY WINCHESTER 1300

WHAT THIS MANUAL COVERS:
Step-by-step complete disassembly and reassembly procedures
2 pages of exploded parts diagrams that includes all part names.
Confidently install replacement parts and accessories.

MODEL COVERAGE:

• Winchester 1300, Standard, Featherweight, Magnum, Ranger, Pistol Grip, Camo, Deer, Combo, XTR, WinTuff, Slug Hunter, Marine, and all similar models. Winchester 1200 Sears “Ted Williams” Model 1200 Sears Ranger Models, 120 and 200. These models are very similar to the newer SXP pump-action models.

• 35 high-resolution photos

• Detailed exploded parts diagrams

• Easy-to-follow, hands-on format

• Comb-bound – lays flat for convenient, hands-free use on your workbench

• Durable cardstock cover for shop or range use


SPECIFICATIONS:

Format: Printed Manual
Pages: 16
Size: 8.5" x 6"
Condition: New
UPC: 400100347164
ISBN:
GTIN:

IMPORTANT NOTES:

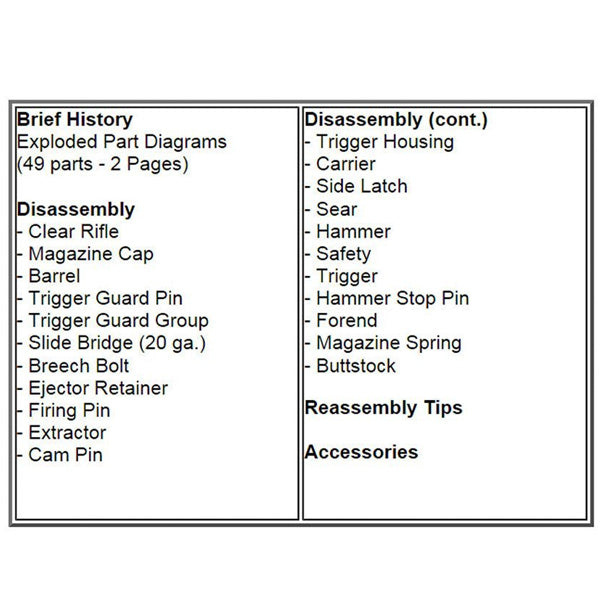

See photos for Table of Contents and additional details
ABOUT GUN-GUIDES®:
Gun-Guides® is the #1 publisher of firearm disassembly and maintenance guides, reloading guides, and log books for documenting reloading data / range activity, and your personal firearms collection.

© 2026 Gun-Guides LLC * All rights reserved Gun-Guides™ and Perfect Adapter™ are registered trademarks of Gun-Guides, LLC

All references to Winchester® and Winchester Repeating Arms® are trademarks of Winchester® and Winchester Repeating Arms®.
Gun-Guides® and this publication are not affiliated with or approved by Winchester® and Winchester Repeating Arms®.

Excerpt from this Guide:
A Brief history of the Winchester 1300 Shotgun
No pump shotgun is faster than the Winchester Model 1300.
In fact, the Model 1300 is so fast, we call it the Speed Pump™
The Model 1300 is based on the Model 1200 introduced by
Winchester in 1964. Please see similar models listed on the back cover.
Historical timeline of the Model 1300.
1978: Model 1300 pump shotgun introduced.
1984: 1300 Featherweight pump shotgun, 12 ga., 20 ga and pistol grip models.
1985: Magnum Waterfowl and Ranger youth slide action.
1987: Model 1300 Camo Pack 22” and 30” barrels, Ranger Deer combination pack.
1988 Model 1300 Wild Turkey Federation “Gun of the Year”, XTR 28” barrel, Featherweight 22” barrel, and WinTuffs.
1990: Slug Hunter, 28” & 26” barrels, Stainless Marine, Ranger 26”, and 20 gauge Defender.
1994: Realtree Turkey Gun
1995: Model 1300 Turkey and Deer Smoothbore barrel
1997: Model 1300 Lady Defender 8 shot 20 gauge.
1999: Model 1300 Upland and Camp Defender
2000: Model 1300 Black Shadow Cantilever Deer
2002: NWTF Short Turkey
2005: Model 1300 Practical Defender

January 17th of 2006 it was announced that U.S. Repeating Arms
Company (the company that makes Winchester the Model 1300 Speed Pump Shotgun) would be shutting down the factory located in New Haven, Connecticut.
