Dillon Precision XL750 PRESS w/o DIES OR CALIBR CONVERSION
$850.00
Skip to product information
In stock
Dillon Precision XL750 PRESS w/o DIES OR CALIBR CONVERSION
(SKU:DP75076)
MPN: 75076
$850.00
Quantity:

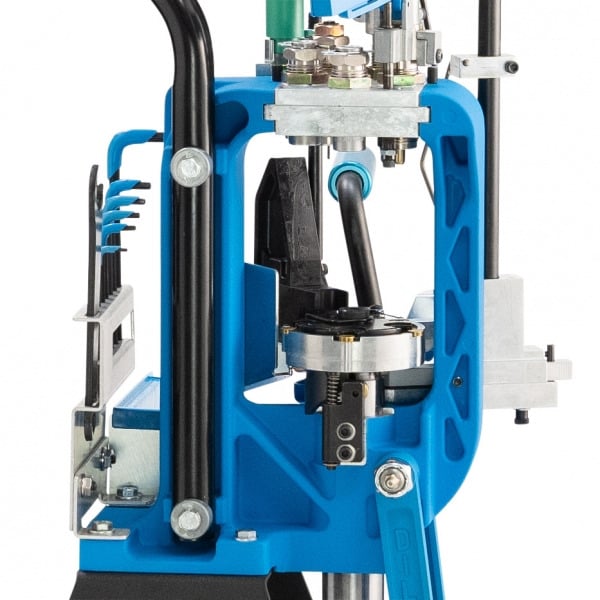

The Dillon XL750 is a high-speed progressive reloading machine designed to load common rifle and handgun cartridges, from 17 Hornet through the common belted magnum cartridges in rifle, and 32 ACP through 500 S&W in handgun. Machine height from the bench is 32" without the optional electric case feeder, 38 1/2" with the electric casefeeder installed.
The XL750 comes with a lifetime warranty against manufacturing defects and normal wear and tear.
NOTE: NO DIES ARE INCLUDED WITH THE LOADER. DIES ARE SOLD SEPARATELY.
CONFIGURATION NOTE: the XL750 does not support the combination of the Dillon 3-die set, a low powder check and a Mr. Bullet Feeder.

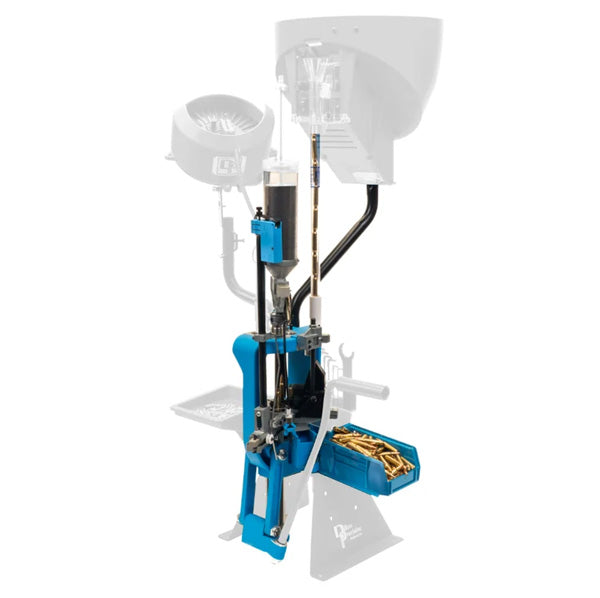

The basic XL 750 includes the following:
- 1 powder measure with standard large and small powder bars (small bar installed). The small bar throws from 2.1 to 15 grains of powder. The large bar throws from 15 to 55 grains of extruded powder or up to 60 grains of ball/spherical type powder.
- 1 primer system with large and small priming parts (appropriate size installed).
- 1 large and one small primer pick-up tube.
- Low Primer Alarm
- 1 loaded cartridge bin
- 1 toolhead
- 1 powder die
- 1 set of standard Allen wrenches
The XL750 is highly customizable. See options and recommendations listed below.
You Will Also Need (At Minimum) (Sold Separately)
- Reloading Dies
- Powder Scale
- Reloading Handbook
- Calipers
- Primer Flip Tray
- Case Lube (for bottleneck cartridges)
Dillon Also Suggests That You Purchase
- Electric Casefeeder to speed up your reloading substantially.
- Case feed plate(s), required if you purchase a casefeeder.
- Dillon dies, which are designed for high-speed use.
- Extra primer pick-up tubes, if loading more than 100-200 rounds per session.
- RF100 Electric Primer Filler, an accessory well worth considering if you are loading more than 500 rounds per session.
- A machine cover to keep the unit dust free.
To Change Calibers, You Will Need
- Additional die set.
- Caliber conversion kit.
- You may need a different casefeed plate. Please refer to the caliber conversion chart in the manual.
- If you prefer to dedicate a separate primer feed station for each size: #20476 Large or #20419 Small.
If you leave your dies preset, you'll need a Quick Change Kit which includes powder measure, powder die, and a toolhead. This allows you to leave your dies and powder charge set up and dedicated to a specific cartridge for faster, easier caliber changes.

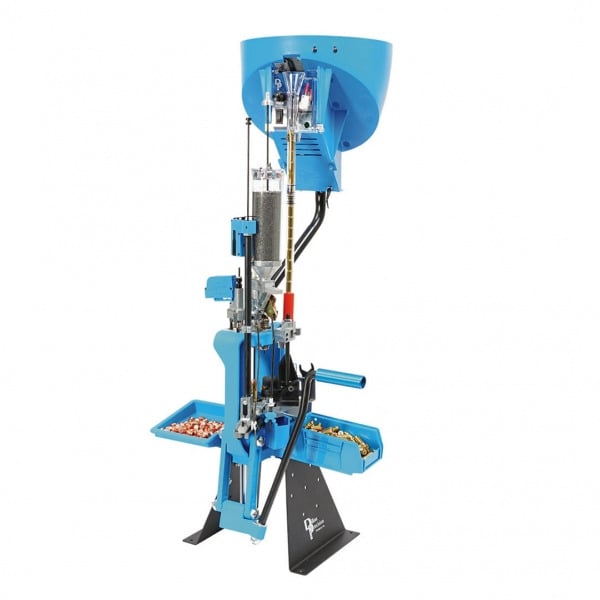

The XL750 is shown in the second picture with the following options that are not included:
- Electric Casefeeder
- Roller Handle
- Strong Mount
- Bullet Tray
- Powdercheck Die
- Low Powder Sensor
- Die set
- Product Height: 13.8
- Product Width: 14.0
