Gun Guides DISASSEMBLY & REASSEMBLY M1 CARBINE

• The only current printed manual that includes information on ALL models.
• Easy to use -- Comb binding lies open and flat on your work surface.
• 16 pages & 39+ high-resolution grayscale images.
• Cardstock cover. Bright white paper.

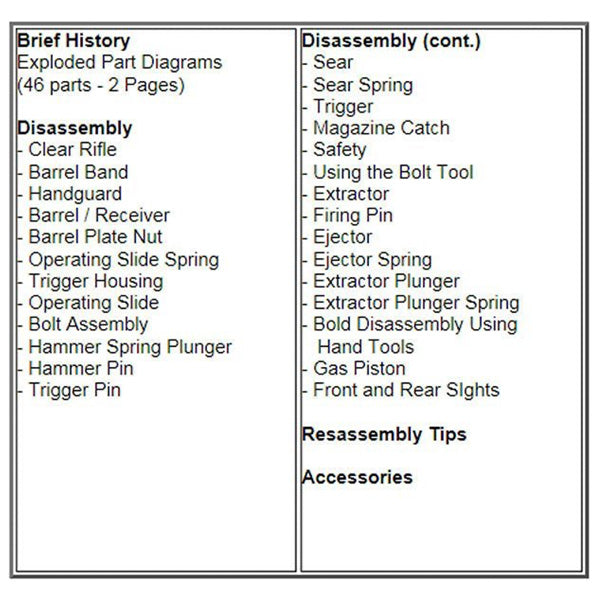

Brief History
Exploded Part Diagrams
(46 parts - 2 Pages)

Disassembly
- Clear Rifle
- Barrel Band
- Handguard
- Barrel / Receiver
- Barrel Plate Nut

- Operating Slide Spring
- Trigger Housing
- Operating Slide
- Bolt Assembly
- Hammer Spring Plunger
- Hammer Pin
- Trigger Pin
- Sear
- Sear Spring
- Trigger
- Magazine Catch
- Safety
- Using the Bolt Tool
- Extractor
- Firing Pin
- Ejector
- Ejector Spring
- Extractor Plunger
- Extractor Plunger Spring
- Bold Disassembly Using Hand Tools
- Gas Piston
- Front and Rear SIghts

Resassembly Tips

Accessories
